LIFTING SYSTEMS

hand CHAIN HOIST

EGA Master hand chain hoists are designed, manufactured and controlled according to the FEM standard, ensuring the maximum safety with a diversity of lifting possibilities. Its exclusive permanent load chain guide avoids the chain jams or breaks. This, together with its patented immediate action safety brake system and with the Safety Factor 5-6 recommended for the chain, not only reinforces the work in safe conditions, but also, extends the use cycles maximizing their useful life.
Its optimized design only requires minimal maintenance: a simply lubrication periodically.

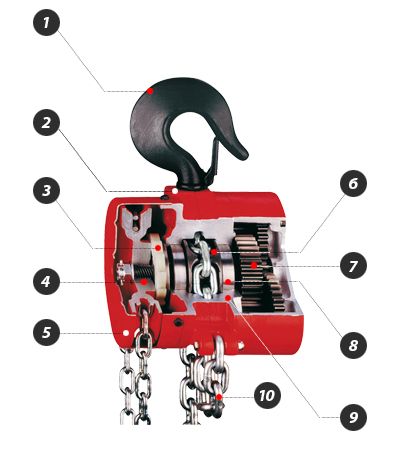

CHAIN HOIST PARTS
1. Hooks

  Forged steel, free turning with security trigger
2. Main Body

  Completely closed, and small in size
3. Security brake

  Patented, immediate action, reduces the force required for lowering loads
4. Control Flywheel

  Cast iron
5. Flywheel casing

  Steel plate
6. Load Chain Sheave

  Made of alloy steel, milled in a CNC machine and heat-treated with a non-slip coating
7. Reducer

  With planetary gears, made of hardened steel with a 120 Kg/mm2 minimum breakage load
8. Ball Bearings

  Great load capacity that practically cancels out any friction on the supports and reduces the force required for lifting loads
9. Permanent Load Chain Guide

  Made up of two central bodies which completely surround the sheave and provide permanent guide for the load chain throughout its travel over the plane of rotation of the sheave
10. Load chain

  Calibrated, Grade 80 High Resistance steel, under standards EN 818/7. With zinc treatment against rusting

HAND CHAIN HOIST

	References							Approx. weight with 3 m.			Additional weight x extra m. of lift.		Hand Chain
Load Capacity Kg.	Hook	Push Trolley	Geared Trolley	Nº of Chain falls	Load Chain Safety Factor	Load Chain Ø x pitch mm.	Hand Chain Ø x pitch mm	Hook Kg.	Push Trolley Kg.	Geared Trolley Kg.	With Hook Kg.	With C-T Trolley Kg.	Effort to lift full load Kg.	Developement x m. of lift Kg.
250	00657	-	-	1	8:1	5x15	4x19	8	15	17	1.15	1.75	17	20
500	00658	00671	00678	1	6:1	5x15	4x19	8	15	17	1.15	1.75	21	31
1.000	00659	00672	00679	1	6:1	7x21	5x21	13	23	27	2.10	3.10	26	50
1.600	00660	00673	00680	1	5:1	8x24	5x21	18	33	37	2.50	3.50	32	66
2.000	00661	00674	00681	1	4:1	8x24	5x21	18	35	41	2.50	3.50	38	66
2.000	00662	00675	00682	1	6:1	10x28	6x27	31	48	54	3.60	5.05	40	80
2.500	00663	00676	00683	1	5:1	10x28	6x27	31	48	54	3.6	5.05	44	80
3.200	00664	00677	00684	2	5:1	8x24	5x21	29	60	66	3.90	5.35	32	132
5.000	00665	-	00685	2	5:1	10x28	6x27	45	-	93	5.85	7.30	40	160
6.300	00666	-	00686	2	6:1	13x36	6x27	75	-	126	8.95	10.40	48	175
8.000	00667	-	00687	3	7:1	13x36	6x27	110	-	220	12.75	14.20	42	264
10.000	00668	-	00688	3	6:1	13x36	6x27	120	-	240	12.75	14.20	50	264
12.500	00669	-	00689	4	7:1	13x36	6x27	160	-	290	16.60	18.00	50	352
16.000	00670	-	00690	5	6:1	13x36	6x27	205	-	340	20.40	21.80	50	440

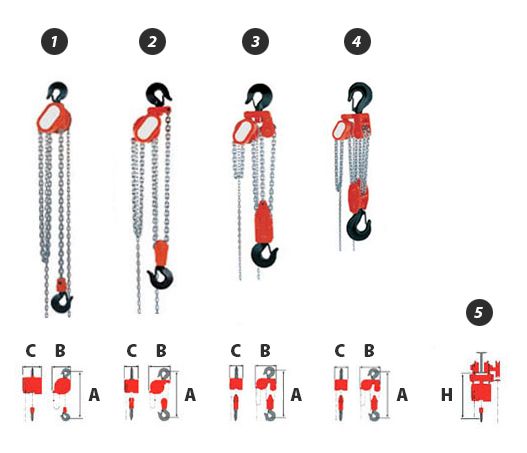

1 Load chain fall from 250 Kg. to 2.000 Kg.
2 Load chain falls from 3.200 Kg. to 6.300 Kg.
3 Load chain falls from 8.000 Kg. and 10.000 Kg.
4 and 5 Load chain falls from 12.500 Kg. and 16.000 Kg.
Hand hoist coupled to trolley

	References			Dimensions				IPN
Load Capacity	Hook	Push Trolley	Geared Trolley	A mm	B mm	C mm	H mm	Track Width in mm
250	00657	-	-	260	130	160	280	50-82
500	00658	00671	00678	260	130	160	280	50-82
1.000	00659	00672	00679	310	160	175	330	66-98
1.600	00660	00673	00680	380	180	185	400	82-113
2.000	00661	00674	00681	380	180	185	400	82-113
2.000	00662	00675	00682	415	210	205	435	82-113
2.500	00663	00676	00683	415	210	205	435	82-113
3.200	00664	00677	00684	520	260	185	540	98-125
5.000	00665	-	00685	640	290	205	660	119-149
6.300	00666	-	00686	730	380	230	760	119-149
8.000	00667	-	00687	870	440	230	890	137-185
10.000	00668	-	00688	900	440	230	940	137-185
12.500	00669	-	00689	1.000	490	250	1.040	143-185
16.000	00670	-	00690	1.150	520	250	1.200	143-185
