CONTROLLED TIGHTENING
STANDARD
58769
Accuracy CW (clockwise)
±2%
Accuracy CCW (counter clockwise)
±3%
Resolution
0,01 N.m / 0,01 Lb.ft / 0,1 Lb.in / 0,1 Kg.cm / 1º
Data memory
2000
Data communication to the computer
RF WIRELESS
1/2"
N.m
17-340
Lb.ft
12-251
Lb.in
150-3009
Kg.cm
173-3469

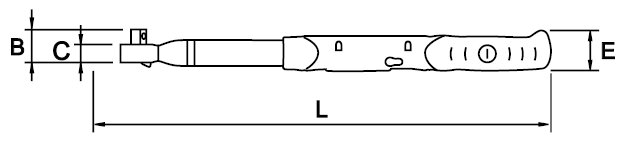

L (mm)
620
A (mm)
43
B (mm)
44
C (mm)
28
D (mm)
39
E (mm)
44
1-360º
1,7
1
12M
Technical specifications
Calibration certificate
●
Warning system
Audible and light alarm
Unit selection
N.m / Lb.Ft / Lb.in / Kg.cm / °
Web calibration
●
Batteries
AA x 2
Battery operation time
110 h
Battery life (standby)
1 year
Working temperature
-10 °C ~ 60 °C
Storage temperature
-20 °C ~ 70 °C
Maximum distance between the receiver and the wrench
100 m (This distance could be reduced depending on the environment)
Frequency band
ISM 433 MHz
Joint Dimensions
14 x 18 mm
